Light lifting equipment 3t Electric Single Girder Bridge Crane
1. Do you know for Light lifting equipment 3t Electric Single Girder Bridge Crane
Applicable situation: When you need to use a crane indoors, and the maximum weight of the lifted goods does not exceed 3 tons, you can use 3tons electric single girder bridge crane. Its working level can be: A3, A4, A5. But it should be noted that the crane cannot Use in workshops with flammable and explosive materials. 3tons electric single girder bridge crane belongs to the category of light lifting equipment.
2. Main Features of Light lifting equipment 3t Electric Single Girder Bridge Crane
1).Light structure,easy installation and maintenance;
2). Wide working area, the maximum span can be 28.5 meters
3). Modern electric hoist assembly workshop, equipped with testing platform to ensure high quality
4). Fully automatic automatic robot assembly line welding end beam
5). Painting: Manual brushing to ensure uniform coating thickness and high adhesion
3. Specification for EOT crane manufacturers 5t LD electric eot crane single beam bridge crane with span 29m
| S/N. | Crane No.s | 1 |
| 1 | Name | Light lifting equipment 3t Electric Single Girder Bridge Crane |
| 2 | Model | LDA |
| 3 | Capacity | 3t |
| 4 | Span | 16.5m |
| 5 | Lifting height | 7m |
| 6 | Lifting speed | 8m/min |
| 7 | Cross travel speed | 20m/min |
| 8 | Long travel speed | 20m/min |
| 9 | Control type | Wirerless remote control |
| 10 | Power supply | 440V50Hz3Ph AC |
| 11 | Lifting motor | 4.5KW |
| 12 | Trolley traveling motor | 0.4KW |
| 13 | Crane long traveling motor | 2x0.8KW |
| 14 | Crane weight | 3400Kgs |
| 15 | Max.wheel pressure | 23.4KN |
| 16 | Rail model | P24 |
4. FAQ
1). What's the information should I provide when inquiry? More details or drawings of your workshop, it's better. Like the maximum weight of the lifted goods, Your local voltage and ao son.
2). How many operating methods for my selection? Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3). Can this type work in hazardous environment? If it’s that kind of work environment, then it will be explosion-proof elctric single girder crane
4). How can we install the crane? Our senior engineers can do installation guidance services and training by your side.
5). Safety device Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
Product Tags:
|
|

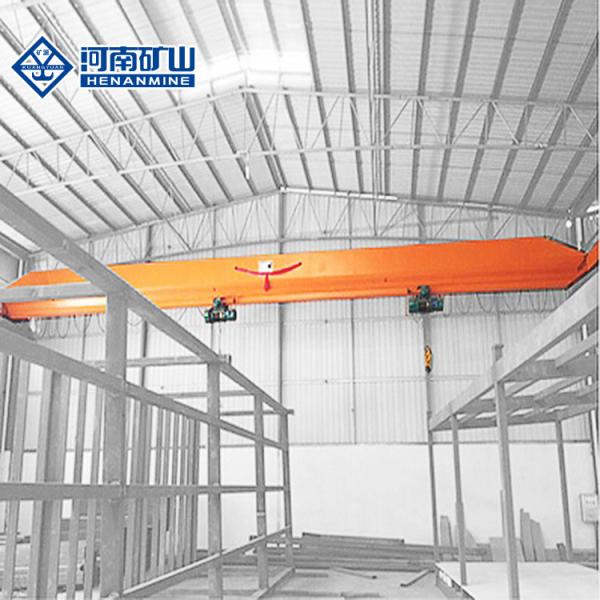

Light lifting equipment 3t Electric Single Girder Bridge Crane Images
|
