5 ton CD model electric wire rope hoist
product description of 5t light Variable speed Electric Wire Rope Hoist:
Model CD1, MD1 electric wire rope hoist is small-sized lifting equipment, which can be mounted on single beam, overhead, gantry and jib cranes, with slight modification. it can also be used as a winch. It is widely used in factories, warehoused, cargo store areas and shops. It is essential equipment in raising working efficiency and improving working conditions.
Model CD1 electric hoist has only normal speed, which can satisfy normal application. Model MD1 electric hoist provides two speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.
product feature of 5t light Variable speed Electric Wire Rope Hoist:
5t factory Electric wire rope hoist is a kind of special lifting equipment, installed on overhead cranes and gantry cranes. The factory electric wire rope hoist has the characteristics of small size, light weight, simple operation and convenient use. It is used in industrial and mining enterprises, storage, docks and other places.
The structure and characteristics of the factory electric wire rope hoist: The machine adopts an electromechanical integration design. By changing different molds, you can press different specifications of wire ropes. The factory electric wire rope hoist is easy and safe to control and convenient for inspection, installation and maintenance of the motor. The main disadvantages are the poor heat dissipation of the motor, poor grouping, and complicated power supply devices, manufacturing and assembly.
Product Parameters:
| Model | CD1,MD1 |
| Capacity | Tons | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 |
| Hoisting height | m | 6,9,12 | 6,9,12,18,24,30 | 9,12,18,24,30 |
| Hoisting speed | m/min | 8 | 8 | 7 | 3.5 |
| Travel speed | m/min | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 18 |
| Wire rope | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 |
| Spec. | 6x37+FC | 6x37+FC | 6x37+FC | 6x37+FC |
| Hoisting motor | Type | Type | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 |
| Power | Power(kW) | 0.8 | 1.5 | 3 | 4.5 | 7.5 | 13 | 13 |
| Rotation speed | Rotation speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 |
| Current | (A) | 2.2 | 4.3 | 7.6 | 11 | 18 | 30 | 30 |
| Travel motor | Type | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 |
| Power | Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 |
| Rotation speed | Rotation speed (r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Current | Current(A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 |
| Power | 3PAC 220v/230v/380v/400v/415v/440v,50HZ/60HZ, |

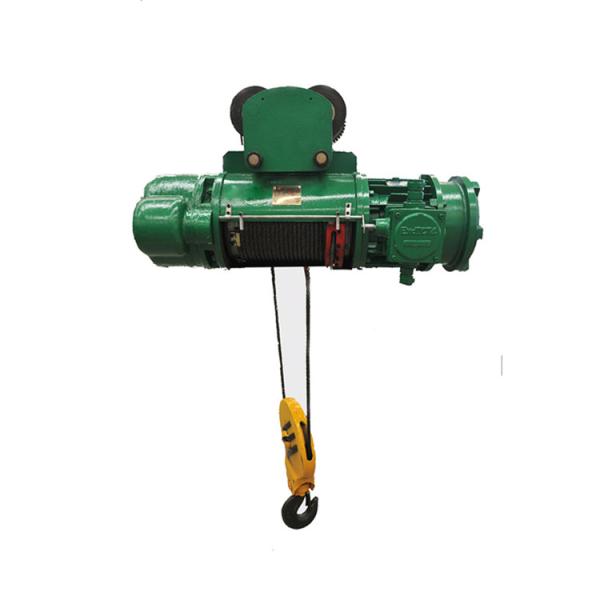

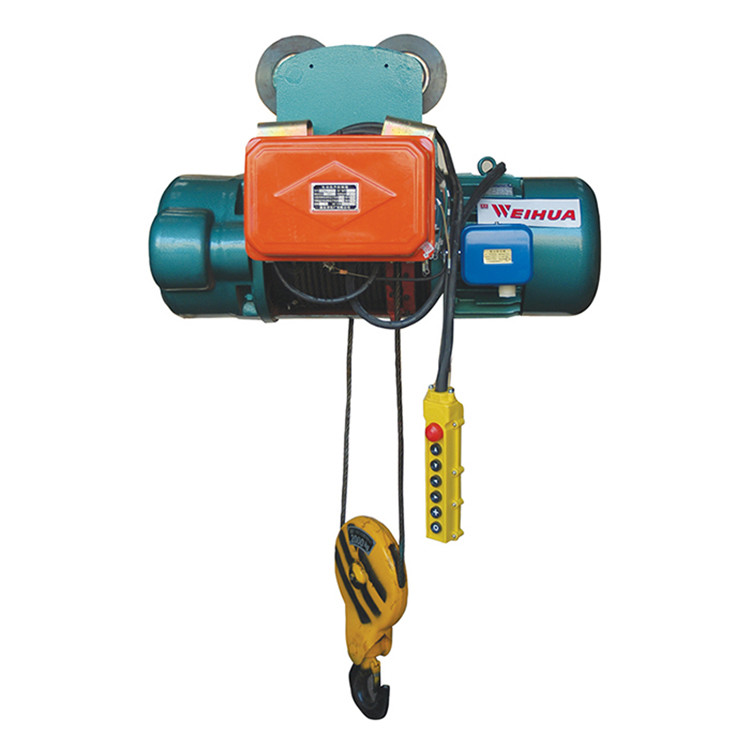

Product pictures:
If you want to purchase an factory electric wire rope hoist, please inform us your lifting tonnage and lifting height, as well as other requirements, such as speed, voltage, etc. You can also tell us the situation of the equipment use site or the working content of the factory electric wire rope hoist, and we will help you choose the appropriate model.
