20ton Low clearance European single beam Overhead Travelling Crane

low clearance light European standard Single Girder Overhead Crane

Production description

European standard single girder overhead crane consists of one girder beam supported on each side by an end truck. The electric hoist (electric wire rope hoist & electric chain hoist)of European standard single girder overhead crane are underhung—meaning they run on the bottom flange of the European standard single girder overhead crane. 5 ~ 50t A4~ A6 European standard single beam bridge crane has light weight, small wheel pressure, easy to operate and light, but it still has powerful functions, multiple control modes, variable speed, can undertake multiple tasks, reasonable design, low clearance, easy installation, and effectively reduce the production cycle and cost.European standard Single Girder Overhead Crane provide an ergonomic way to move loads that would otherwise be difficult or awkward to configure.European standard Single Girder Overhead Cranes are also built to handle critical loads — from high-value equipment to containers of harmful chemicals — and are thoroughly tested to ensure optimal performance.

Depending on the specific application and load capacity, the following European standard Single Girder Overhead Crane systems can range in size, complexity, and operation. Regardless of style, however, there are three universal parts for European standard Single Girder Overhead Cranes:

• Bridge: The bridge is comprised of stationary or mobile rails that form a parallel runway to carry one or more trolleys across it.
• Trolley: Running side to side across the bridge, this unit carries the hoist.
• Hoist: The hoist is the mechanical device that hooks onto the load to raise it. Hoists can also be used independently for vertical lifting applications. The most common type, electric hoists, use single-, double-, and variable-speed electric motors to lift capacities ranging from 250 pounds to several hundred tons.

Product advantage Analysis

The European standard single-beam bridge crane adopts imported configuration, new materials, and new finished products. It is a new type of crane with light weight, generalization, energy saving and environmental protection, and high technology content. It meets international production standards and has light weight and obvious increase in tonnage.

European standard single-girder bridge crane operating mechanism of large and small vehicles adopts European technology three-in-one transmission form, hard tooth surface reducer, compact structure, low noise, no oil leakage, and long service life.

Due to the use of European-style compact trolleys and high-strength materials, the European standard single-girder bridge crane is small in size and light in weight. Compared with traditional cranes, the height of the plant can be reduced under the same lifting height, effectively reducing the cost of the plant.

Compact structure, modular design, small headroom, small size, large working range, effectively improving production efficiency.

Full frequency conversion control, stable operation, no impact, slow heavy load, fast light load, energy saving and consumption reduction.

European standard single girder overhead crane selection instructions

1. The working level of the European standard single girder overhead crane is A5 (FEM 2m), without auxiliary hook. Customers can put forward corresponding requirements according to their own needs, and you can achieve higher work level and function through customized European standard single girder overhead crane.

2. The European standard single girder overhead crane can also add auxiliary lifting mechanism and the setting value of double speed under light load. Generally, the primary and secondary settings are 4:1, which can also be set according to customer requirements. Due to the action of the auxiliary hook, the total weight and wheel pressure of the European standard single girder overhead crane will increase.

3. When the customer's requirements of European standard single girder overhead crane is change, such as working level, speed, lifting height, the corresponding parameters, size, weight, wheel pressure, etc. will also change. The actual parameters, quality and wheel pressure meet the contract requirements.

4. The lifting speed and Trolley Speed listed of European standard single girder overhead crane in the table are standard values, which can be adjusted according to the needs of customers.

5. Technical parameters and dimensions of European standard single girder overhead crane will be changed due to technical improvement or upgrading.

European standard single girder overhead crane is typically less expensive due to:

1. Reduction in freight expenses

2. Faster installation

3. Simpler hoist and trolley design

Lighter runway beams

Safety Features of European standard single girder overhead crane:

Weight overload protection device, top quality durable polyurethane buffer, crane travelling limit switch, low voltage protection function, emergency stop system, current overload protection function.

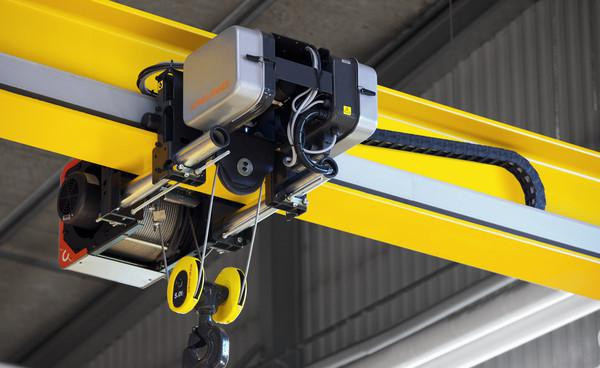

Product picture of European standard single girder overhead crane:

When you send us inquiry of European standard single girder overhead crane, plese try to give us the basic technical data as fellow:

If you are interested in this European standard single girder overhead crane, you can contact us by email

Variable Speed Single Girder Overhead Crane

A3 Overhead Travelling Crane

Wireless Remote Single Girder Overhead Crane

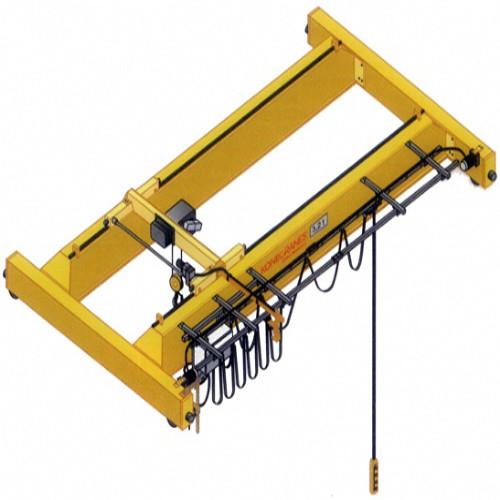

20ton Low clearance European single beam Overhead Travelling Crane Images
