10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane
Product description of 10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane:
LDA single-beam bridge crane is a hoisting machinery with a wide range of applications at present. Cranes generally work indoors, and the working environment temperature is -20℃-50℃. The relative humidity of the air does not exceed 85%. The crane adopts a single main beam structure, and uses an electric hoist as a lifting mechanism, which is suspended on the lower edge of the main beam for lateral movement.
Ground operation adopts squirrel cage motor with self-contained plane brake. Conical winding brake motor is used when operating in the cab. The brake is a conical brake. The reducer adopts one-open and one-close or one-open and two-close involute gear deceleration. Device.
Technical Parameter(customizable) of 10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane:
| Lifting weight | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t |
| Span | m | 7.5~22.5m | 7.5~31.5 |
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 |
| CD1 hoist | 8 (7) | 3.5 |
| Traveling of electric hoist | 20 | 20 |
| Traveling of cable trolley crane | 20/30 | 20/30 |
| Wheel diameter | Φ270 | Φ370 |
| Width of trail | 37~70mm | 37~70mm |
| Operational Model | Remote control; ground handle | Remote control; ground handle |
| Working Duty | A3 |
| Power Supply | According to your demands | According to your demands |

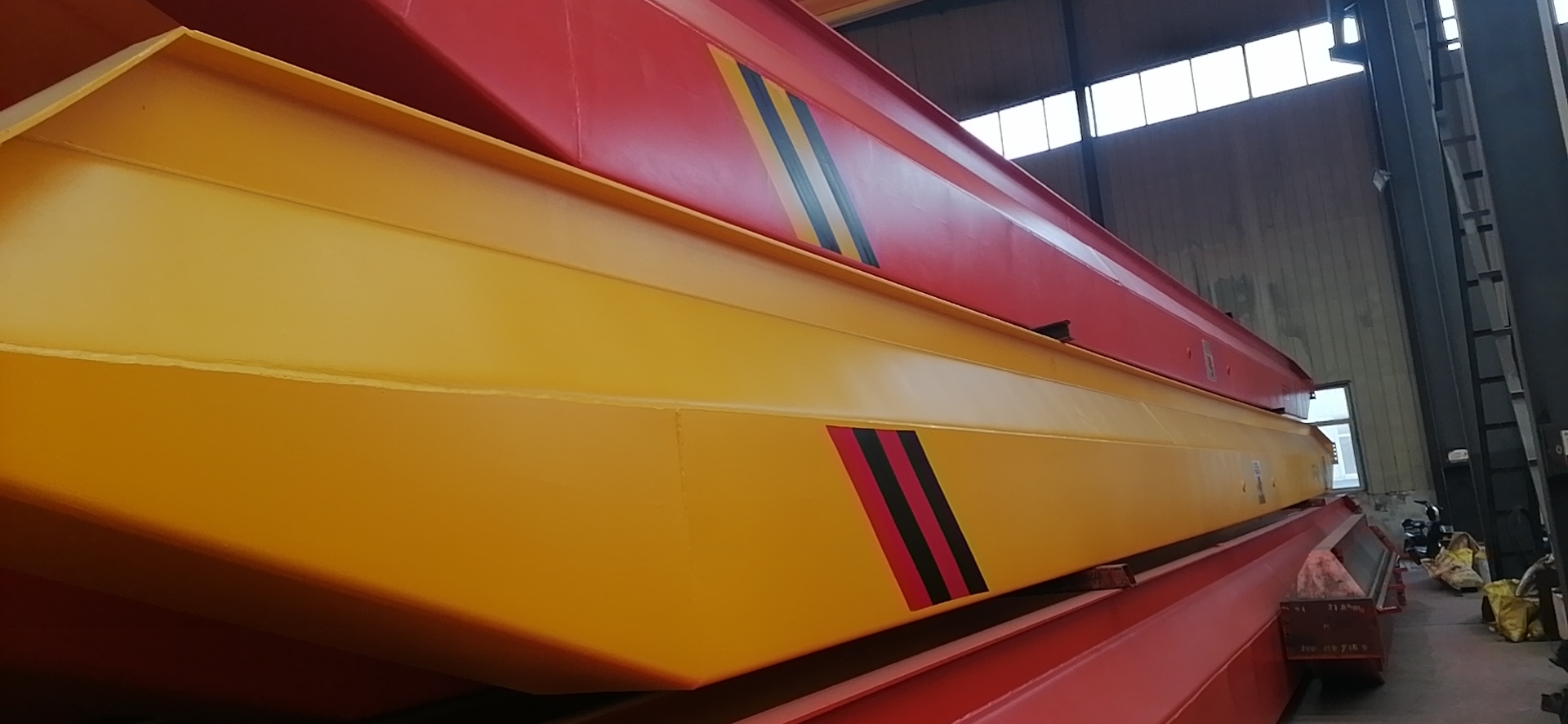

Photos of 10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane

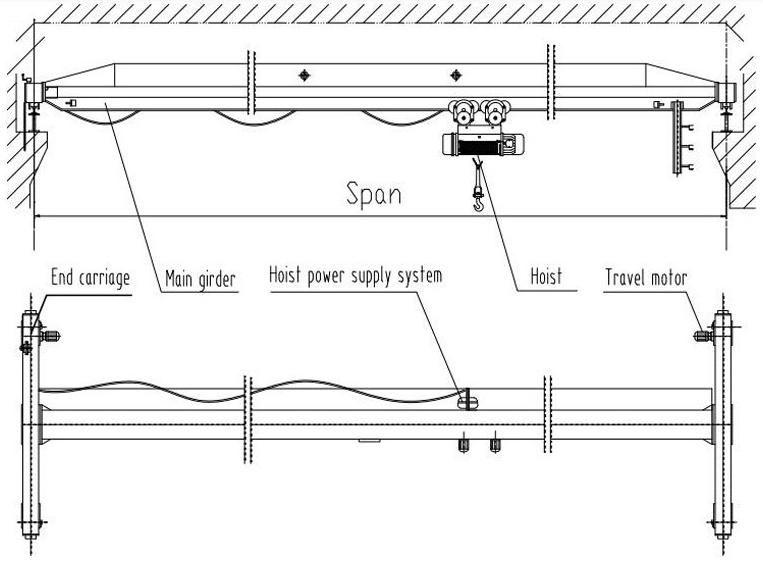

Sketch of 10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane
Main Features of 10Ton 15Ton Pendent Line Control Electric Single Beam Overhead Traveling Crane:
Design as per latest technology of ISO,CE Standard
Lifting weight 1-20ton
Span 7.5m-31.5m
Reasonable structure, strong rigidity
According to customer needs can be equipped with different spreader
Standard modular design
Light structure,strong bearing capacity
Low noise, soft starting and stopping ;
Safe and reliable operation
Heavy duty slipring motor,Or Sq.cage motor with VVVF,
IP54 or IP44,insulation class F or H
soft starting and smooth running
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.

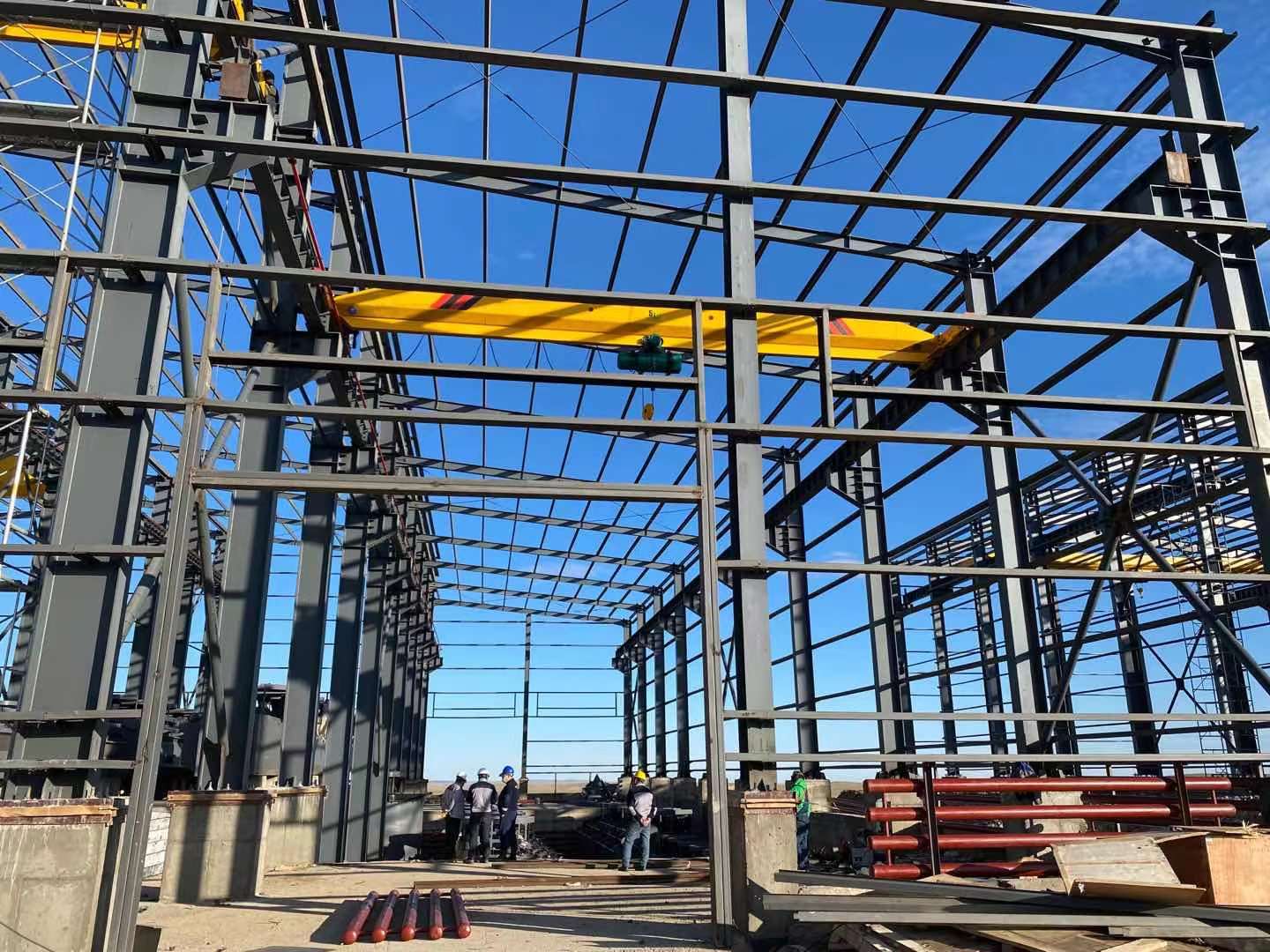

Installaton case:
