Electric control system 1. The electric control housing of multifunction electric Single Girder Overhead Crane adopts standardized design, thus easy to replace and install.
2. The Major electric element of multifunction electric Single Girder Overhead Crane adopts international well-known brands.
3. The limit standard equipment of multifunction electric Single Girder Overhead Crane adopts Italian GG original importing brand, to ensure effectively safe operation and stop of crane.
4. Power supply of multifunction electric Single Girder Overhead Crane, big or small, adopts parallel installation of C type steel double track, enables little resistant and stable operation.
Product components of electric Hoist Single Girder Overhead travelling Crane 0.5~20t
Multifunction electric Single Girder Overhead Crane is a usual crane forms a complete set with electric Hoist. mainly used in machinery manufacturing and places like assembling plants,storage houses.The product is technologically advanced and its design according to international standards: DIN (Germany), FEM (Europe),ISO (International), with the advantages of low energy consumption, strong rigidity, light weight, outstanding structural design, etc., which can effectively save plant space and investment.The cost and unique structure of the walking are your best choice.
Main Features of Multifunction electric Single Girder Overhead Crane:
1). Light structure,easy installation and maintenance;
2). Reasonable structure,strong bearing capacity ;
3). Low noise, soft starting and stopping ;
4). Safe and reliable operation ;
5). Low cost maintenance, long working life;
6). Strong box type,welding by machine hand.;
7). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
8). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
Product technical parameters:
| Capacity | t | 3 | 5 | 10 | 16 | 20 |
| Operational method | | Pendent line with press button /cabin/remote control |
| Speed | Hoisting | m/min | 8. 8/0.8 | 7. 7/0.7 | 3.5, 3.5/0.35 | 6. 6/0.6 |
| Travelling of crab | 20 |
| Travelling of crane | Surface | 20(30) | 20 |
| Cabin | 20(30) | 20 |
| Electric hoist | Type | CD1-3 MD1-3 | CD1-5 MD1-5 | CD1-10 MD1-10 | CD1-16 MD1-16 | |
| Lifting height | m | 6,9,12 | 6,9,12,18 | 9,12 | 9,12 | 9,12 |
| Working class | | A3~A5 |
| Power supply | | 3-phrase 50/60HZ 200~440V |
There are only some common models of multifunction electric Single Girder Overhead Crane in the table, and various other models and parameters of multifunction electric Single Girder Overhead Cranes can be produced through customized design.

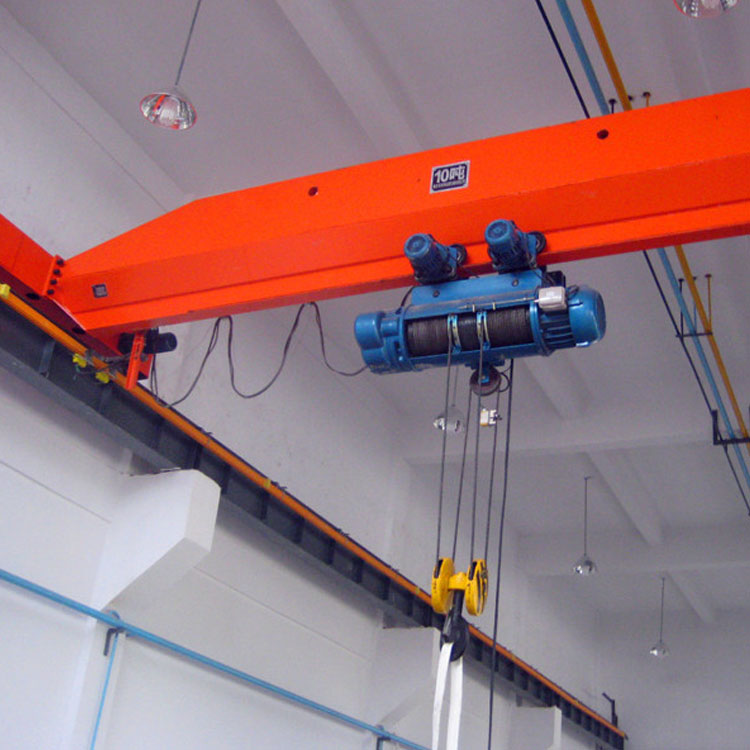

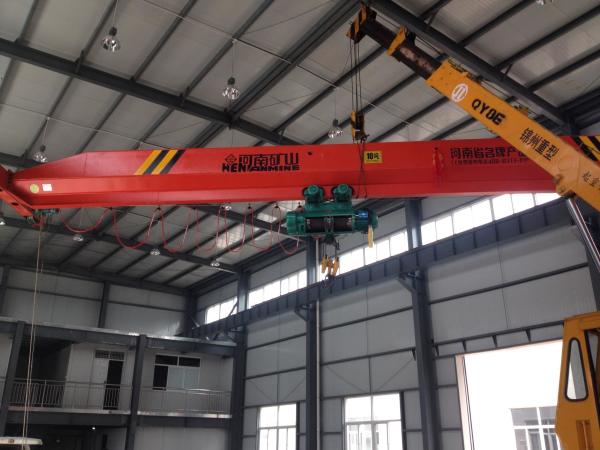

Product picture display:
Attention:
Safety is the most important issue for multifunction electric Single Girder Overhead Cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this)
