10 Ton Remote Control Single Beam Electric Overhead Traveling Crane:
Product Description:
LDA model 10Ton Single Beam Electric Overhead Traveling Crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4.
10Ton Single Beam Electric Overhead Traveling Crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.
10Ton Single Beam Electric Overhead Traveling Crane is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
the working environment temperature is -10℃~60℃, and the relative humidity does not exceed 50% at a temperature of 40℃. Other places where molten non-metallic materials and hot solid metals are lifted can also be used as reference.
Technical parameters of 10Ton Single Beam Electric Overhead Traveling Crane:
| Lifting weight(T) | 3 | 5 | 10 | 16 | 20 |
| Span(m) | 10.5~31.5 |
| Max Lifting height(m) | 6~30 |
| Working class | A3 A4 |
| Main Hoisting Speed(m/min) | 8,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5,3.5/0.35 | 3.5,3.5/0.35 |
| Trolley Cross Traveling Speed(m/min) | 20,2~20(frequency inverter) |
| Crane Long Traveling Speed(m/min) | 30,3~30(frequency inverter) |
| Motor Type | Squirrel cage motor |
| Motor (Kw) | Main Hoisting | 4.5 | 7.5 | 13 | 13 | 18.5 |
| Trolley Cross Traveling | 1*0.4,1*0.8,2*0.8 |
| Crane Long Traveling | 2*0.8,2*1.5,2*2.2 |
| Control mode | Pendent line control,Remote control,Cabin control |
| Recommended Rail model | 24kgs/m | 30kgs/m | 38kgs/m | 43kg/m |
| Power source | | 3Ph A.C 50Hz 380V |

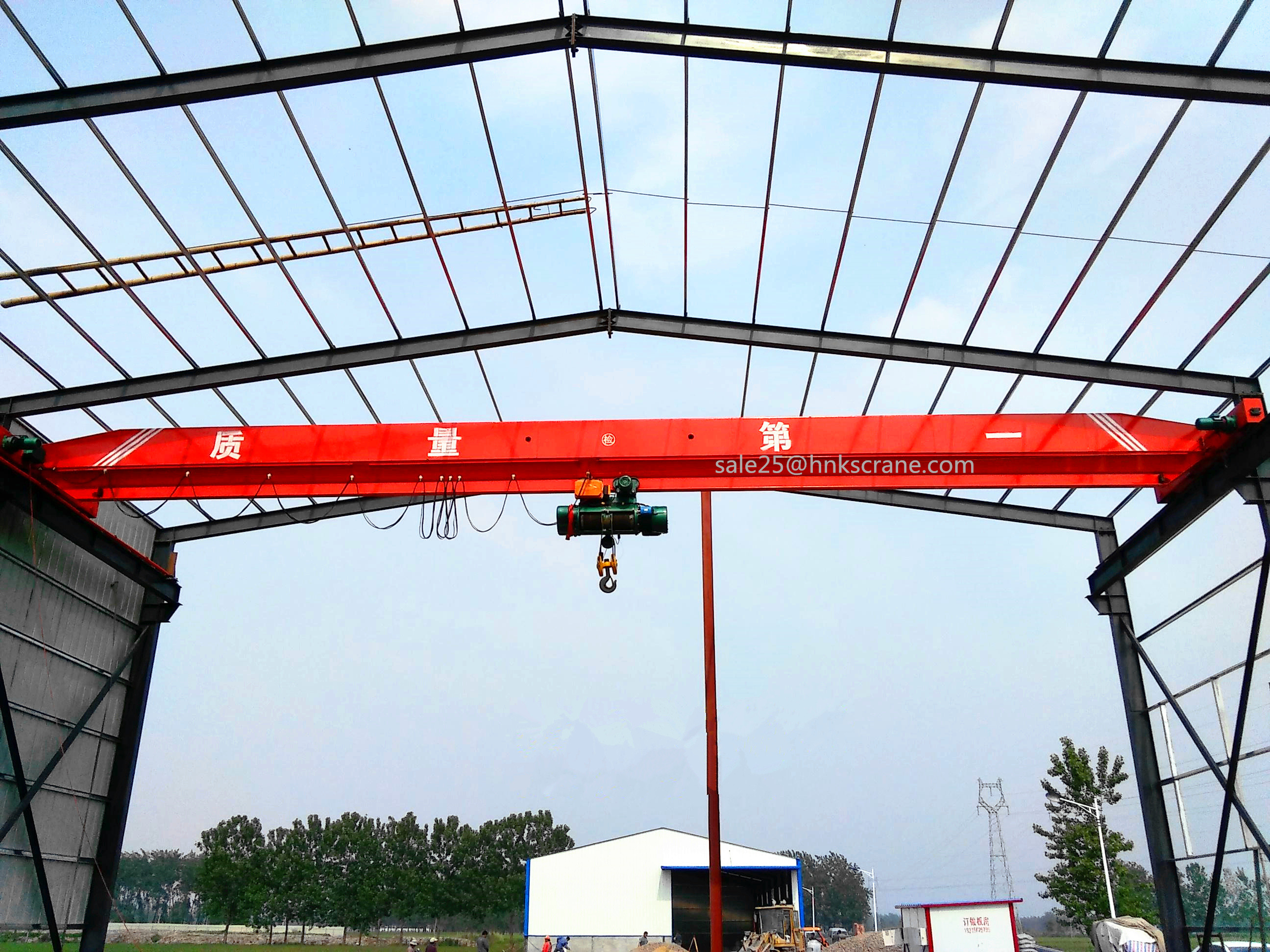

Product photo of 10Ton Single Beam Electric Overhead Traveling Crane:
Main Features of Top quality 10Ton Single Beam Electric Overhead Traveling Crane :
1,Strong box type, one whole shape main beam welded by robot machine, very strong and beautiful.
2, Sand blast for the whole crane steel structure, to make sure the paint is very strong.
3, Six action direction movement, to get enough working area.
4, Anti high temperature
5, Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection
Short-circuit protection
Phase sequence protection
Zero position protection,Voltage loss protection
Limit switch and stopper for crane long traveling and cross traveling
Overhigh lift and overlow lift limit switch
Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Container gantry crane/European type crane and hoist /Electric Winch,Jib crane,Scissor Lift/Crane components.

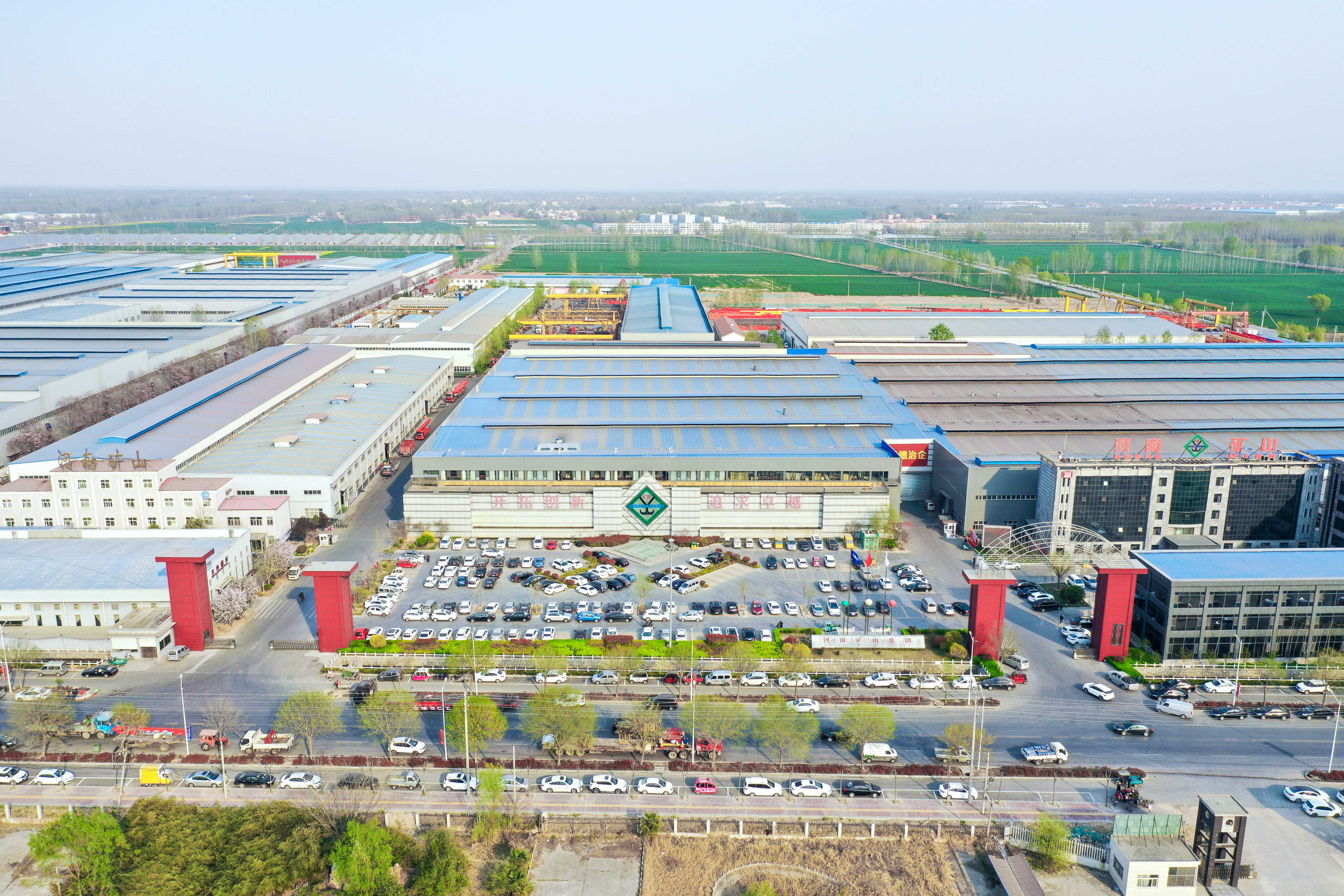

Henan Mine Crane has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, ISO,CE etc certifications, cranes are exported to 120countries.
In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works.
Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
Certifications:
We have passed CE, GOST, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
