10T European Single beam bridge crane A5 Double Speed Low headroom
product description of European style single beam bridge crane
Production descriptions of 10T European Single and double beam bridge crane A5 Double Speed Low headroom.
Overhead cranes provide an ergonomic way to move loads that would otherwise be difficult or awkward to configure.
They are also built to handle critical loads — from high-value equipment to containers of harmful chemicals — and are thoroughly tested to ensure optimal performance.
Depending on the specific application and load capacity, the following crane systems can range in size, complexity, and operation. Regardless of style, however, there are three universal parts for overhead cranes:
- Bridge: The bridge is comprised of stationary or mobile rails that form a parallel runway to carry one or more trolleys across it.
- Trolley: Running side to side across the bridge, this unit carries the hoist.
- Hoist: The hoist is the mechanical device that hooks onto the load to raise it. Hoists can also be used independently for vertical lifting applications. The most common type, electric hoists, use single-, double-, and variable-speed electric motors to lift capacities ranging from 250 pounds to several hundred tons.
Selection instructions European style single beam bridge crane
1. The working level of the basic specification crane of this product series is A5 (FEM 2m) without auxiliary hook. Customers can put forward corresponding requirements according to their needs.
2. This series can also increase the auxiliary crane mechanism, and can also increase the setting of doubling the speed at light load. Generally, the main and auxiliary setting is 4:1, and it can also be set according to customer requirements. The total weight and wheel pressure of the crane will increase due to the auxiliary hook.
3. When the customer's requirements change, such as the working level, speed, and lifting height, the corresponding parameters, dimensions, weight, wheel pressure, etc. will change. The actual parameters, quality, and wheel pressure are in accordance with the requirements of the contract. Prevail.
4. The lifting speeds listed in the table, the speeds of large and small vehicles are standard values, and can be adjusted accordingly according to customer needs.
5. Technical parameters and dimensions will change due to technical improvements or upgrades.
If you are interested in such European cranes, you can contact us by email.
product feature
The European bridge crane is based on the introduction and digestion of international advanced technology, guided by modular design theory, and modern computer technology as a means to introduce optimized design and reliability design methods, and adopt imported configurations, new materials, and new The finished process is a new crane with lightweight, generalization, energy saving, environmental protection and high technology content.
-The large and small car operating mechanism adopts European technology three-in-one drive form, hard-tooth surface reducer, compact structure, low noise, no oil leakage and long service life.
-Due to the use of European-style compact trolleys and high-strength materials, the overall size of the machine is small and light in weight. Compared with traditional cranes, the height of the plant can be reduced under the same lifting height, which effectively reduces the cost of the plant.
-Modular design, short design cycle, high degree of generalization, and improve the utilization of parts.
-Compact structure, low headroom, small size, large working range, effectively improving production efficiency.
-Full frequency conversion control, stable operation, no impact, slow heavy load, fast light load, energy saving and consumption reduction.
European A5 double speed 5T Single Girder Overhead Crane consists of one girder beam supported on each side by an end truck. The electric hoist (electric wire rope hoist & electric chain hoist) are underhung—meaning they run on the bottom flange of the single girder.
Single girder overhead crane is typically less expensive due to:
1. Reduction in freight expenses
2. Faster installation
3. Simpler hoist and trolley design
Lighter runway beams
Safety Features:
Weight overload protection device, top quality durable polyurethane buffer, crane travelling limit switch, low voltage protection function, emergency stop system, current overload protection function.

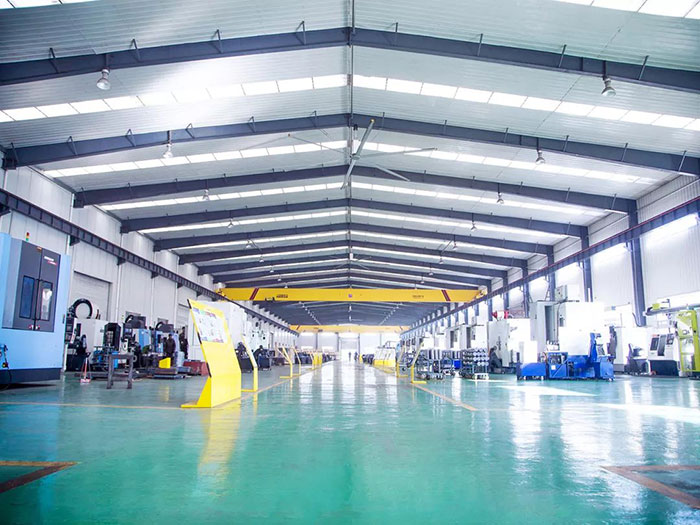

Our Factrory Making Cranes Picture
Delivery Photos
When you send us inquiry, plese try to give us the basic technical data as fellow:
| Lifting Capacity | _____T |
| Lifting Height | ______m |
| Electricity | __V__HZ__Phase |
| Span | _____m |
| Travelling Distance | _____m |
| Control Type | Pendant button, wireless remote control or driver's cab operation |
Product Tags:
|
|

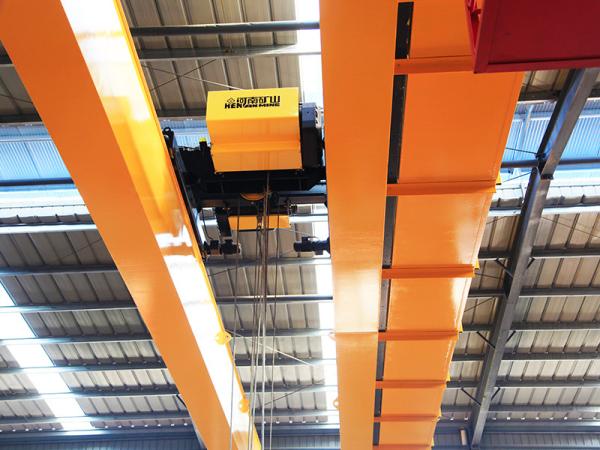

10T European Style Steel Box Type Double Speed Single Beam EOT Crane Images
|
