5 Tons Span 20M Single Beam Bridge Crane Warehouses Factory Use
product description of single beam overhead crane:
LDA Single Girder Overhead Crane is widely used in plants warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
LDA Single Girder Overhead Crane has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.
Technical Parameter(customizable) of single beam overhead crane:
| Lifting Weight | T | 1t | 2t | 3t | 5t | 10t | 16t | 20t |
| Span | m | 7.5~22.5m | 7.5~31.5 |
| Speed | Lifting | MD1 hoist | m/min | 8/0.8 (7/0.7) | 3.5/0.35 |
| CD1 hoist | 8 (7) | 3.5 |
| Traveling of electric hoist | 20 | 20 |
| Traveling of cable trolley crane | 20/30 | 20/30 |
| Wheel diameter | Φ270 | Φ370 |
| Width of trail | 37~70mm | 37~70mm |
| Operational Model | remote control; ground handle | remote control; ground handle |
| Working Duty | A3 |
| Power Supply | According to your demands | According to your demands
|
Main Features of Bridge single beam overhead crane:
1). Light structure,easy installation and maintenance;
2). Widely used in different places for hoisting such as factories,warehouses and material yards;
3). Reasonable structure,strong bearing capacity ;
4). Low noise, soft starting and stopping ;
5). Safe and reliable operation ;
6). Low cost maintenance, long working life;
7). Strong box type,welding by machine hand.;
8). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
9). Heavy duty slipring motor,Or Sq.cage motor with VVVF, IP54 or IP44,insulation class F or H,soft starting and smooth running
10). Siemens main electric parts are used for durable and safe operation.;
11). Prohibited to use in the environment with inflammable,explosive and corrosive media.

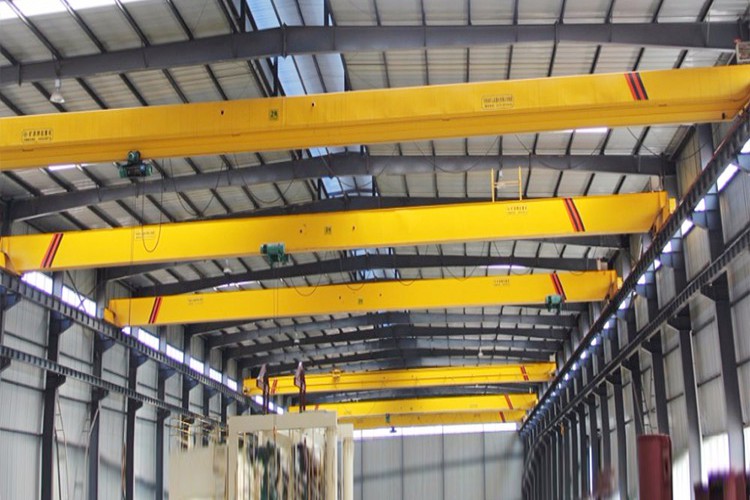

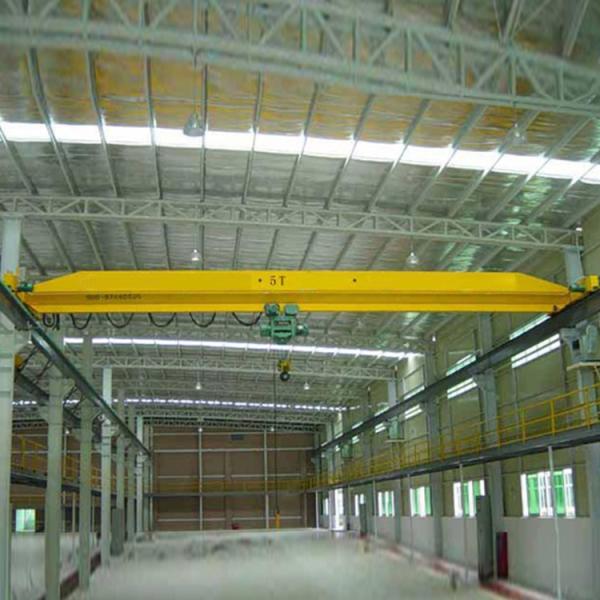

Detailed Images of single beam overhead crane:
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
