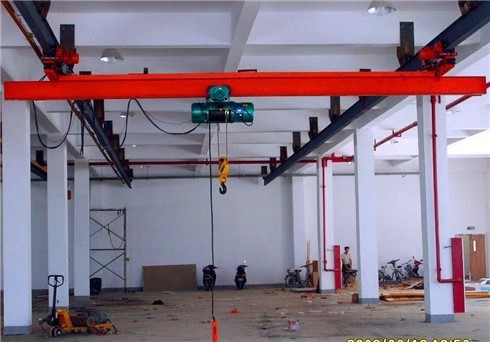

5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop
1. Descption of 5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop
5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop belongs to very low clearace light duty lifting equipment. Electirc hoist is at one side of main girder, can increase service space of hook and reduce the cost. With advantages of big trolley tread . smooth travelling. tight structure . strong rigidity. delicate operation. low noise. safety and reliability and beautiful exterior, it is widely used in the situation that clearance height of workshop is low and operating ambient temperature is -25℃~+40℃.
2. Configuration details of the 5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop
| Configuration details of the5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop |
| Steel plate | Anyang/ Handan Q235 steel |
| Hoist lifting motor | Squirrel cage motor,China famous brand |
| Trolley traveling motor | Squirrel cage motor,China famous brand |
| Crane traveling motor | Squirrel cage motor,China famous brand |
| Hoist lifting gear box | China famous brand |
| Trolley traveling gear box | China famous brand |
| Crane traveling gear box | China famous brand |
| Wheel | 50#steel forged wheels, processed and heat treated by HENAN MINE |
| Bearing | China famous brand |
| Brake | Built in mechanical brake,inside motor |
| Wire rope | High strength wire rope, Jiangsu Juli |
| Hook | DG20Mn high strength material forged hook |
| Main Electrical parts | SCHNEIDER |
| Crane traveling limit switch | Included |
| Overload limiter | Included |
| Trolley power supply | Festoon cable |
| Control mode | Pendent line control |
| Control panel | YES |
| Cable | Crane industry special cable YC or YVFB type, bear temperature up to 60’C |
| Buffer | High quality polyurethane buffer |
| Painting | Manual brush painting,One alkyd iron red primer painting, two alkyd orange enamel finish painting |
| Safe features of the the 5 Tons Red Bridge Crane, Span 10m, uesd for Lifting motors in Workshop | |
| Weight overload protection device | √ |
| Emergency stop system | √ |
| Over current Protection,Short-circuit Protection | √ |
| Phase sequence protection | √ |
| Zero position protection,No-Voltage protection | √ |
| Mechanical interlock protection of controller | √ |
| Limit switch for crane long traveling | √ |
| Stopper and Limit switch for trolley cross traveling | √ |
| Lifting up and lower down limit switch | √ |
| High quality polyurethane buffer for crane long traveling protection | √ |
3. FAQ
Q1: Why do I believe in your quality?
We use the most advanced production equipment in the world, from Crane design, manufacturing, to testing, have a professional team responsible.
Q2: What services do you offer?
A: A: Our team offer a range of professional services to installation and maintain your crane. From Crane design,production to installation and after-sales service.
Q3: What do i need to consider when purchasing from you ?
A: Please tell us some information about your factory, like it's width, Length and height and so on.
